High Accuracy 500kg Payload Drop Tester for Packaged Freight Meets ISTA IEC Standard

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	DT050
Certification :	CE ISO
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	50 Sets / Month
Delivery Time :	30days

Add to Cart

Product Details
Company Profile

High Accuracy 500kg Payload Drop Tester for Packaged Freight Meets ISTA IEC Standard

High Accuracy 500kg Payload Drop Tester for Packaged Freight Meets ISTA IEC Standard

To evaluate impact effects of shock, drop and tumble encountered in repair and handling process, so do the safety strength assessment.
The general drop test is against bottom, angle, edge and tumble. According to related specifications you can lift one side of the product by angle to make it drop freely.

Product Description

For the massive packing goods and the mass is large, the vertical drop height is relatively low in the transportation and handling. So the Standard Free DropTest Equipment for Heavy Packaged Cargo is relatively low. This drop tester is mainly used for larger package drop test. Zero height drop tester use a quickly moves down E fork mounting as bracket. The specimen place balance as the test requirment(plane, edge,angle). When doing the test, the bracket do high-speed downward movement before the specimen, acceleration >3g, it need guarantee the bracket separate with the specimen and realize free fall. The standard drop height range is 2.54cm-120cm.

Auto Parts Packing Carton Packaging Drop Test Machine With ISTA Standard Specification

Model	DT015	DT020	DT030
Drop height(mm)	0----1200	0----1200	0---1200
Specimen weight(KG)	150	200	300
Specimen dimension(mm)	100010001000	120012001200	120012001200
Drop type	Free drop
Machine dimension(mm)	190017002800	210017002800	210017002800
Machine Weight(kg)	2500	3200	4500
Power supply	3 phase AC380V 50HZ
Standards	ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27

Functions and Features

1 With upper and lower displacement limit, safety and reliability;

2 Lifting height can be adjusted arbitrarily to meet the needs of different users;

3 Zero freely-drop test stand adopts the double-rail guiding device for stable and reliable lifting operation;

4 The freely-drop test stand can achieve the clamping fall tests for surface, edge and corners of specimen at different direction;

5 The machine is only needed to be placed on the flat marble or concrete ground for installation, without special foundation.

Labtone Service

Pre-sales service:

Technical Advisory: Testing method, laboratory planning and advice

Equipment Selection: Type-selecting scheme,FAQ

Product testing scheme

Selling service:

Customer Communication,progress communication

Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning

Cooperate with measuring if need the third party verification

After-sale service:

Quality assurance period for one year,lifelong maintenance.

Technical guidance

Feedback within 2 hours after get the call.

Accept OEM,Design service,Buyer lable

Detail Pictures

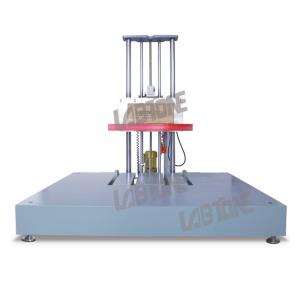

High Accuracy 500kg Payload Drop Tester for Packaged Freight Meets ISTA IEC Standard
