100kg Payload Vibration Shaker Table Systems , Vibration Testing Table YST100

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	YST100
Certification :	CE, ISO
Price :	Negotiable
Payment Terms :	T/T, L/C
Delivery Time :	30 days
Supply Ability :	15 Sets / Month

Add to Cart

Product Details
Company Profile

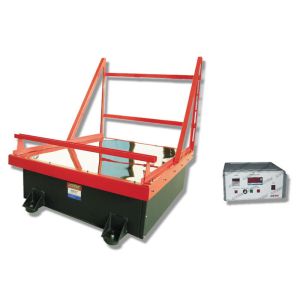

100kg Payload Vibration Shaker Table Systems , Vibration Testing Table YST100

100kg Payload Mechanical Shaker Table Packaging Tranportation Simulator

Product Description

Description and Application

Transportation Simulators mainly applied to conform to ISTA , ASTM, TAPPI, ISO MIL - STD, FED - STD, UN, DOT and other industry and government standards stipulated "repeated impact, loose, or jump" test. Frequency range is 2-5 hz , fixed displacement is 1 inch (25.4 mm), Maximum acceleration is 1.25 G.
YST series vibration table adopts eccentric CAM principle, which can realize rotation, vertical, asynchronous (30 ° unbalance vibration) modes.

Features

1, Adjustable frequency.
2,Fixed amplitude.
3, Convenient installation, operation and maintenance.
4, Unilateral high fence for the back side.

Operating mode

Specifications

Model	YST100	YST200	YST500
Payload(kg)	100	200	500
Table size(mm)	1000*1200	1200*1200	1200*1500
Frequency	2~5Hz(120~300)RPM
Amplitude	1 inch (25.4mm) fixed
Vibration pattern	Rotation , 30 ° unbalance vibration(asynchronous)
Power supply	AC220V±10% 50Hz
