    CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : KDT2000
    Certification : CE, ISO
    Price : Negotiable
    Supply Ability : 50 Sets / Month
    Delivery Time : 30-35 Work Days
    • Product Details
    • Company Profile

    CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg

    CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg


    Introduction

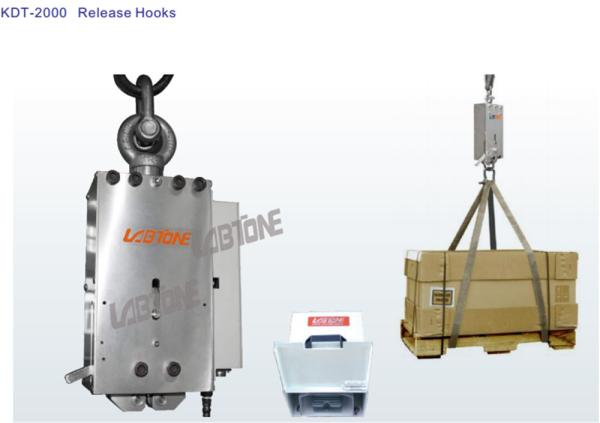

    The KDT2000 Drop Tester is designed to simulate the drops and mechanical hazards that occur in distribution. It is especially suited to very large, heavy payloads that cannot be tested on conventional drop test machines.


    The KDT2000 consists of a quick-release mechanism, lifting ring, and foot-switch for initiating the drop. Straps wrapped around the test item form a sling that attached to the O type ring, which is placed in the latch jaws of the quick-release mechanism. The quick-release mechanism and test package are then lifted to a pre-determined height by a fork-lift, winch, or another lifting device (not included). Press the Remote Foot-switch causing the latch jaws to open and the package to fall.


    Technical Specification


    Weight Capacity: 200kg~1500kg

    Power Required: AC220V / 50Hz ( or according to customer’s need)

    Compressed Air: 0.5Mpa~0.7Mpa

    Lifting Device: Customer Supplied

    Weight of KDT2000 : 11kg ( excluding foot-switch, which is 5kg)

    Size of KDT2000: 345 x 235 x 145 mm

    Size of foot-switch: 270 x 200 x220 mm ( Lx D x H)


    Features

    • High strength aluminum construction for durability and ruggedness
    • Heavy-duty industrial solenoid designed for quiet operation and long life
    • Hardened steel cam rollers ensure a vertical drop
    • Positive lock design will not release the load in the event of power loss
    • Self-lubricating low friction bearings in latch jaws and linkage
    • Forged steel eyebolt provides convenient lifting point
    • The footswitch is covered by a metal guard to prevent accidental activation
    • Footswitch detaches for convenient set-up and storage

    Labtone Service


    Pre-sales service:
    Technical Advisory: Testing method, laboratory planning, and advice
    Equipment Selection: Type-selecting scheme,FAQ
    Product testing scheme
    Selling service:
    Customer Communication, progress communication
    Before installation, we will provide guidance of preparation, equipment debugging, equipment commissioning
    Cooperate with measuring if need the third party verification
    After-sale service:
    Quality assurance period for one year, lifelong maintenance.
    Technical guidance
    Feedback within 2 hours after getting the call.
    Accept OEM, Design service, Buyer label
