    New Energy Battery Vibration Test System With Large Vertical Table And Slip Table

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : EV440
    Certification : CE,ISO
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    New Energy Battery Vibration Test System With Large Vertical Table And Slip Table

    New Energy Battery Vibration Test System With Large Vertical Table And Slip Table


    Vibration testing is crucial for ensuring the reliability and safety of new energy batteries. As batteries are increasingly being used in various applications, including electric vehicles and renewable energy storage systems, it is essential to evaluate their performance under dynamic conditions.

    Our solution encompasses advanced vibration test equipment and specialized test protocols. Our highly precise vibration test systems can simulate real-world conditions, ensuring a thorough evaluation of battery performance and durability. Additionally, our experienced technicians and engineers provide technical support and customization services to meet specific testing needs.


    With our comprehensive vibration testing solution, you can assess the structural integrity, performance, and reliability of new energy batteries accurately. Along with ensuring compliance with industry standards, our solution aids in identifying potential design flaws and optimizing battery performance.


    Equipment Configuration


    ItemConfigurationQty.
    1Vibration shaker COMBO
    A30F44 Shaker (included Pneumatic Centering Controller)1 set
    B153 blower (included silencer and 4.5M Duct )1 set
    Head Expander VT150CM1 set
    Horizontal Slip Table HG150M (included Shaker Rotation system)1 set
    2Power Amplifier
    LA40K power amplifier(included Field power supply)1 set
    3Vibration Controller VCS-4

    Model : VCS-04, Hardware : 4 PE/ICP input channels

    Software application :Sine,Random,Shock

    		1 set
    Accelerometer LTE-C04A07 (with low noise cable)2 pcs
    PC system0 set
    4

    Documentation

    Operation Manual, Test Report, Packing List

    		1 set
    5Accessories
    Maintenance Tools1 set
    Standard Spare Parts1 set

    Vibration Test System Specification


    Shaker Specifications A30F44
    Peak Sine (Pk)4000Kg.f peak (40KN)
    Random (RMS)4000Kg.f r.ms (40KN) @ISO5344
    Shock (Pk)8000Kg.f peak (80KN) @6ms
    Usable Frequency1～3000Hz
    Maximum Displacement (p-p)100mm (4inch)
    Max. velocity2m/s
    Max. acceleration100g (980 m/s2)
    Vertical Load Support500 kg

    Body Suspension Natural

    Frequency (Thrust Axis)

    		Less than 2.5 Hz
    Armature DiameterФ442 mm
    Armature Weight35kg

    Fundamental Resonance

    Frequency (Bare table)

    		2,500 Hz (nom.) +/- 5%

    Load Attachment

    Points (Standard)

    		16 stainless steel M10 Inserts
    Stray Flux Density＜10gauss
    Allowable partial force500.N.M
    Shaker dimensions1290mmL×1010mmD×1145mmH
    Weight of ShakerAbout 3000Kg
    Power Amplifier Specifications LA40K
    Rated Output Capacity40KVA(120Vrms/380Arms)
    Signal to Noise RatioGreater than 65 dB
    Amplifier EfficiencyGreater than 90%
    Amplifier Overall Dimensions600mmL×900mmD×1980mmH
    Weight of AmplifierAbout 530Kg

    Vibration Test System Features


    1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
    2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
    3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
    4) Quick self-diagnosis with safety interlock, high safety reliability
    5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
    6) Horizontal and vertical expansion platforms for different applications
    7) Simple controller operation

    Customer Services

    Presales:

    • Technical consultation: test method, laboratory planning and suggestion.
    • Equipment selection: selection scheme, FAQ.
    • Product testing scheme.


    In-Sales:

    • Customer communication and progress report.
    • Guidance for pre-installation preparation, equipment commissioning and test run.
    • Calibration (when Third Party’s verification is required).


    After-Sales:

    • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
    • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
    • Technical support: special paid services are provided according to customer’s needs.

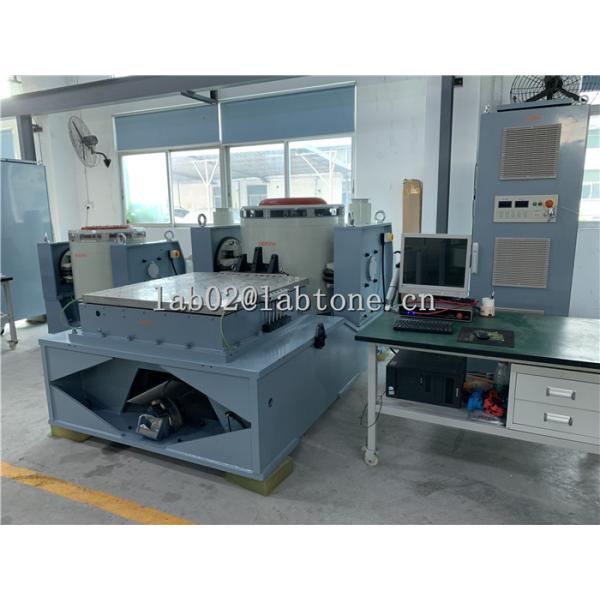

    Vibration Test System Images:

    New Energy Battery Vibration Test System With Large Vertical Table And Slip TableNew Energy Battery Vibration Test System With Large Vertical Table And Slip Table
