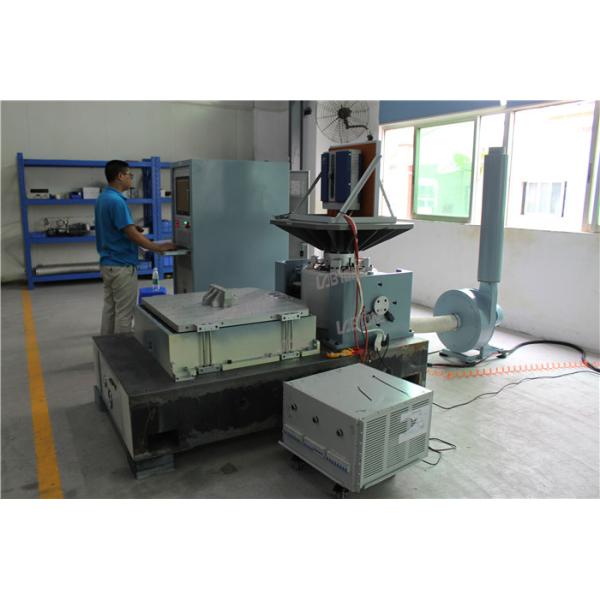

    ISO/TS 16949 , SAE Standards Electromagnetic Shaker Vibration Test System with X, Y, Z axis.

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : EV206
    Certification : CE / ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 15 Sets / Month
    Delivery Time : 45 Working Days
    • Product Details
    • Company Profile

    ISO/TS 16949 , SAE Standards Electromagnetic Shaker Vibration Test System with X, Y, Z axis.

    ISO/TS 16949 , SAE Standards Electromagnetic Shaker Vibration Test System with X, Y, Z axis.


    This versatile range of medium-force shakers is widely used within the automotive, aerospace, transport and packaging, and defence sectors. Coupling industry-standard performance and flexibility, they offer cost-effective and comprehensive solutions for a range of vibration testing scenarios that include product qualification and reliability tests, general stress screening, and product and package testing.


    Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



    Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.



    Features:


    • Long-time operation
    • Minimum maintenance effort
    • High cross-axial stiffness
    • Mounted pivotable in a rugged trunnion with vibration isolators
    • Automatic centering of the armature
    • Pneumatic or electronic load compensation for heavy test loads
    • LS-Shakers with up to 51 mm displacement and electronic zero-point regulation with adjustable stiffness
    • Optional degauss kit to reduce stray magnetic field
    • Multiple safety devices
    • Coarse filter unit for cooling air
    • Squeak&Rattle Option (low noise operation without blower)
    • Wheels&Rails Option (shaker is displaceable on rails)

    Working Principle:


    ISO/TS 16949 , SAE Standards Electromagnetic Shaker Vibration Test System with X, Y, Z axis.


    Specifications:


    ModelEV206
    Vibration GeneratorVG300/50
    Frequency(Hz)2-3000
    Max Exiting Force(kg.f)600
    Max. Displacement (mmp-p)50
    Max. Acceleration(g)100
    Max. Velocity(cm/s)200
    Payload(kg)200
    Armature Mass(kg)6
    Armature Diameter(mm)φ200
    Cooling MethodAir Cooling
    Vibration Generator Weight(kg)920
    Vibration Generator Dimension L*W*H(MM)800*600*710
    Power AmplifierAmp6k
    Cooling MethodForced Air Cooling
    Power Amplifier Weight(kg)320
    Power Amplifier Dimension L*W*H(MM)800*550*1250
    Utility
    Requirements    		3-phase AC380V ±10% 50Hz
    Aggregate Capacity(KW)20

    Detailed Pictures:


    ISO/TS 16949 , SAE Standards Electromagnetic Shaker Vibration Test System with X, Y, Z axis.



    Customer Services


    Presales:

    • Technical consultation: test method, laboratory planning and suggestion.
    • Equipment selection: selection scheme, FAQ.
    • Product testing scheme.

    In-Sales:

    • Customer communication and progress report.
    • Guidance for pre-installation preparation, equipment commissioning and test run.
    • Calibration (when Third Party’s verification is required).

    After-Sales:

    • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
    • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
    • Technical support: special paid services are provided according to customer’s needs.
